Heat Shields FeCrAl Wire Mesh

  • 1
  • 2
  • 3

Model Number : HH-FCW

Certification : ISO9001-2015

Place of Origin : CHINA

MOQ : 1 square meter

Payment Terms : L/C,T/T,Western Union

Supply Ability : 50000 square meters per 20 days

Delivery Time : within 7 work days

Packaging Details : plastic wooden bags, +wooden case

Name : FeCrAl Wire Mesh

Usage : Heat Shields

Material : 1Cr13Al4, 1Cr12Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb, 0Cr27Al7Mo2

Mesh count : 8 mesh - 80 mesh

Wire dia : 21G - 43G

Weave type : plain weave and twill weave

Contact Now

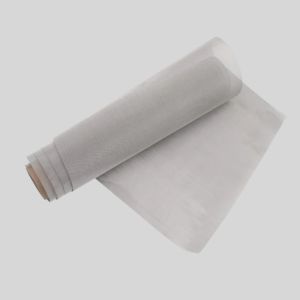

Heat Shields FeCrAl Wire Mesh

Quick details of Heat Shields FeCrAl Wire Mesh

Material: 1Cr13Al4, 1Cr12Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb, 0Cr27Al7Mo2.

Mesh size: 8 mesh - 80 mesh.

Wire diameter: 21G - 43G.

Weaving type: plain weave and twill weave.

Max working temperature:

  • 1Cr13Al4 - 950 degree.
  • 1Cr21Al4 - 1100 degree.
  • 0Cr21Al6 - 1250 degree.
  • 0Cr23Al5 - 1250 degree.
  • 0Cr25Al5 - 1250 degree.
  • 0Cr21Al6Nb - 1350 degree.
  • 0Cr27Al7Mo2 - 1400 degree.

Description of Heat Shields FeCrAl Wire Mesh

FeCrAl alloy wire mesh is a ferritic iron-chromium-aluminium (FeCrAl) alloy used primarily in electrical resistance heating elements, and other high-temperature settings, up to 2370°F. In addition to other beneficial properties, FeCrA wire cloth offers both excellent oxidation resistance and high resistivity. It is often chosen over Nichrome 80/20 , one of the oldest resistance heating alloys, when higher temperature use, longer life, and higher resistivity levels are required

Specification of Heat Shields FeCrAl Wire Mesh

Item Mesh Wire Gauge Aperture (mm) Wire Diameter (mm) Roll Width (m) Weight (kg/m2)
HHFC-01 8 (T) 21 2.375 0.8 1.0 2.5
HHFC-02 8 (T) 22 2.475 0.7 1.0 1.84
HHFC-03 10 (T) 23 1.94 0.6 0.6 1.69
HHFC-04 12 (T) 24 1.557 0.559 1.0 1.8
HHFC-05 17 (T) 24 0.94 0.55 0.6 2.57
HHFC-06 20 (P) 33 1.02 0.25 1.0 0.587
HHFC-07 20 (P) 32 1.0 0.27 1.0 0.685
HHFC-08 20 (P) 30 0.97 0.30 1.0 0.846
HHFC-09 25 (P) 30 0.71 0.30 1.0 1.125
HHFC-10 30 (P) 38 0.69 0.15 1.0 0.30
HHFC-11 34 (P) 33 0.49 0.25 1.0 1.06
HHFC-12 40 (P) 35 0.425 0.21 1.0 0.83
HHFC-13 40 (T) 35 0.425 0.21 1.0 0.83
HHFC-14 44 (T) 35 0.367 0.21 1.0 0.88
HHFC-15 60 (T) 38 0.273 0.15 1.0 0.66
HHFC-16 80 (P) 43 0.227 0.09 1.0 0.324

Some characteristics of FeCrAl alloy wire Mesh which dictate its use are:

  1. Ferritic iron-chromium-aluminium (FeCrAl) alloy.
  2. Nominal composition of 22% chromium, 4.8% aluminum, and iron balance.
  3. Very magnetic in all conditions.
  4. Excellent oxidation resistance and high resistivity.
  5. Good resistance to sulfur and carburizing settings.
  6. Useful in high-temperature settings up to 2370°F.
  7. Can be cut, formed, and welded.
